Wulfenite - Encyclopedia

    Class : Sulfates, chromates, molybdates
    Subclass : Molybdate
    Crystal system : Tetragonal
    Chemistry : PbMoO4
    Rarity : Uncommon

Due to its color, wulfenite is one of the most remarkable secondary lead minerals. It develops mainly in arid to semi-arid climate, it is a rare lead molybdate of the same atomic structure as scheelite or powellite. Molybdenum can be partially replaced by tungsten (up to more than 20% in the chillagite variety). Its name comes from the Austrian mineralogist Franz Xavier Wülfen who studied the lead minerals of Carinthia (Austria). The wulfenite occurs always in clear crystals, their shapes being closely related to the acidity and oxidative character of the crystallization environment : most often in thin square tablets, and more rarely in elongated tetragonal octahedra, it is also rarely found in prisms or pseudo-cubes. The color is usually yellow, orange to orange-red, becoming bright red in the presence of chromium (1 to 3% in the Anarak deposit in Iran). It is exceptionally colorless to bluish-gray. Its brightness is intense because of its high refractive index (2.4), the highest of all lead minerals. Due to its colors, wulfenite is highly sought after by collectors, it is also a very occasional ore of lead and molybdenum.

Tetragonal wulfenite crystals from Helena Mine, Mezica, Slovenia
Prismatic wulfenite from Los Lamentos, Chihuahua, Mexico
Wulfenite tablets from Mibladen, Morocco

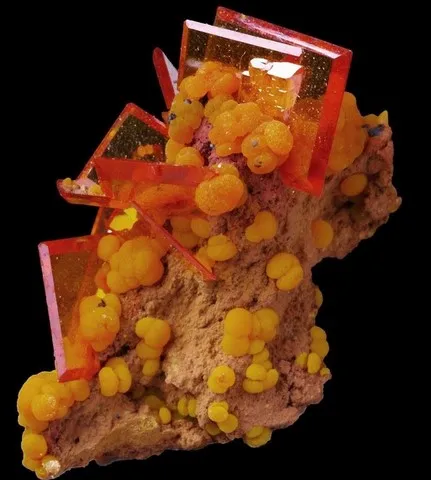

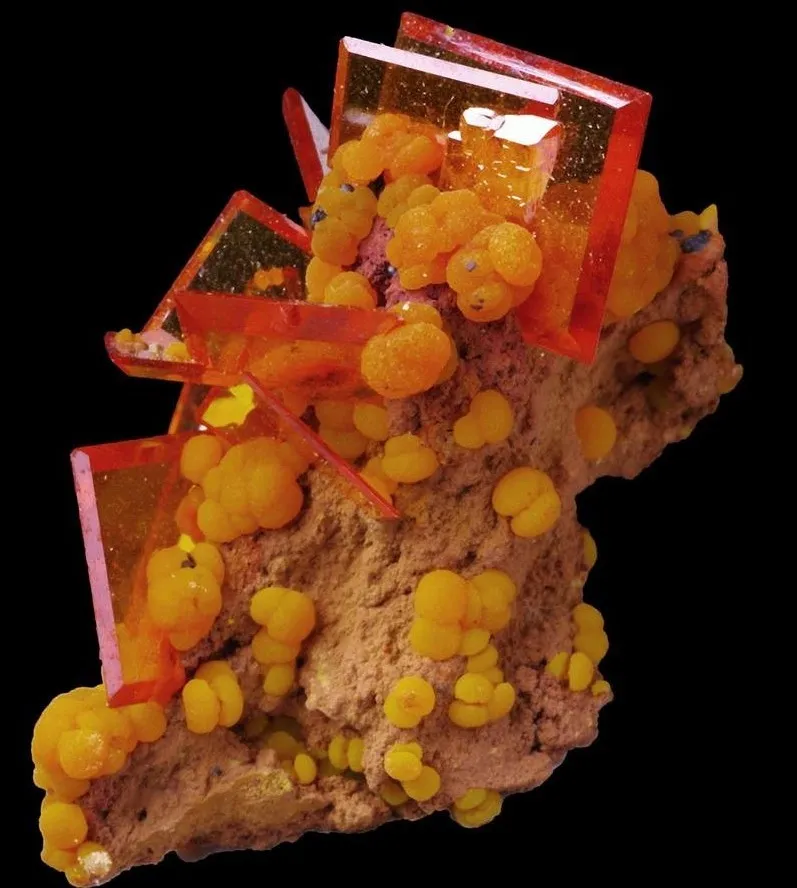

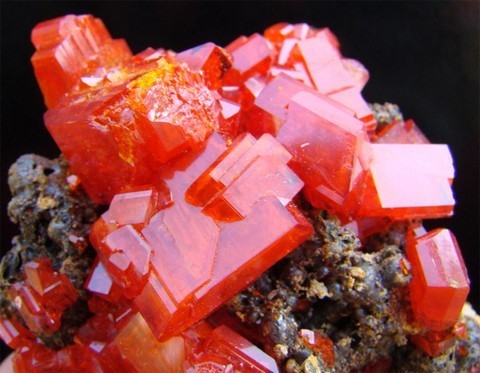

Wulfenite from Red Cloud Mine, Arizona, USA

Wulfenite in the World

The World's finest specimens of wulfenite come from American Arizona deposits where lamellar crystals can reach 5 cm (Mammoth, Globe, Hilltop and Red Cloud mines). Mexico also produced specimens rivaling those from Arizona to Los Lamentos, Chihuahua (yellow to brown prismatic to tabular crystals) and San Francisco, Sonora (5 cm transparent yellow-orange tabular crystals). The African deposits of M'Fouati, Mindouli (Congo) and Tsumeb (Namibia), gave crystals of exceptional sizes of more than 10 cm edge for masses of several kilos ! Also noteworthy is the Mibladen deposit in Morocco that produced bright orange crystals larger than 2 cm on baryte and galena. And finally, there is also the typical Carinthian locality in Austria.

Wulfenite in France

In France, the Farges lead deposit (Corrèze) produced bright orange transparent lamellar crystals up to 10 mm. We must also mention the mines of Lantignié (Rhône), fluorite and barite mines located in the middle of the Beaujolais vineyards. The wulfenite crystals are bright yellow, orange, reddish brown or greyish-brown. The most beautiful tabular specimens can reach 20 mm.

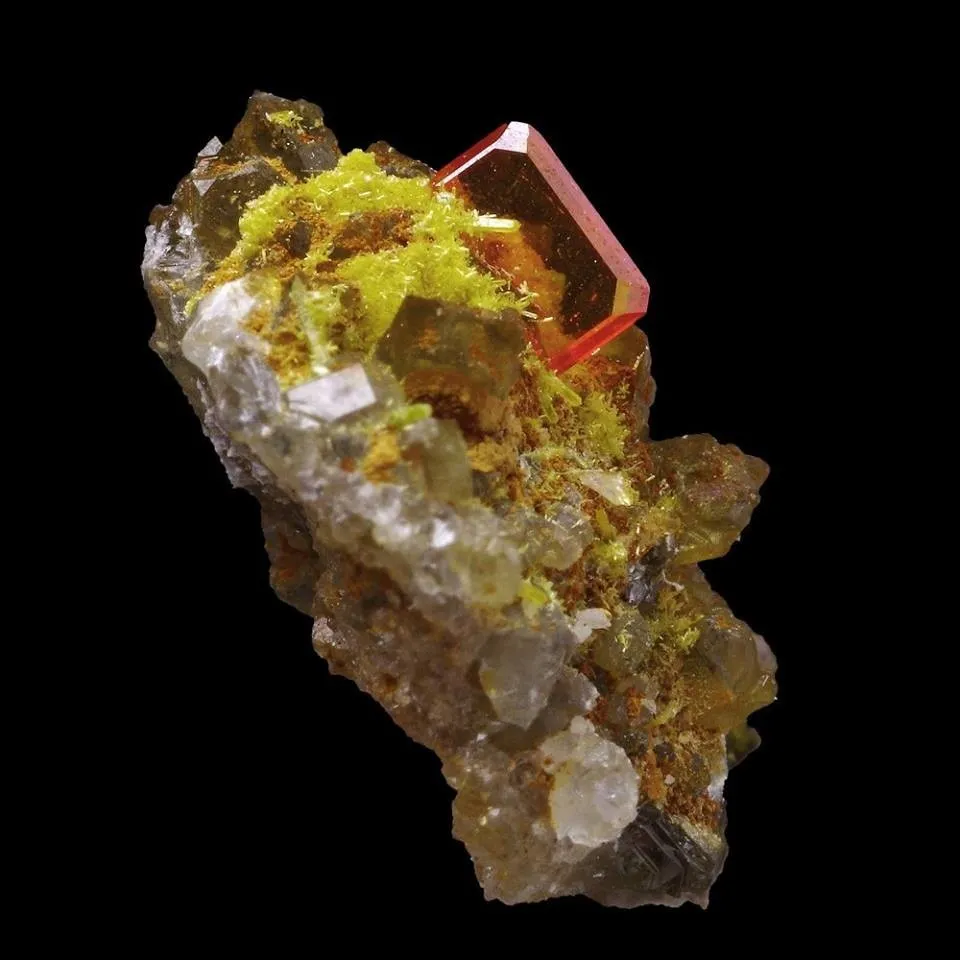

Wulfenite on pyromorphite from Les Farges, Corrèze, France

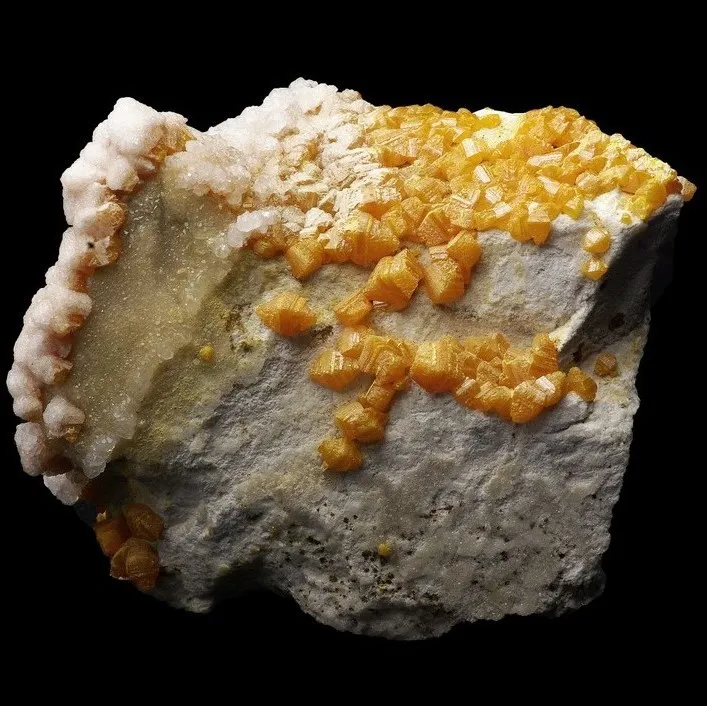

Wulfenite from Lantignié, Rhône, France

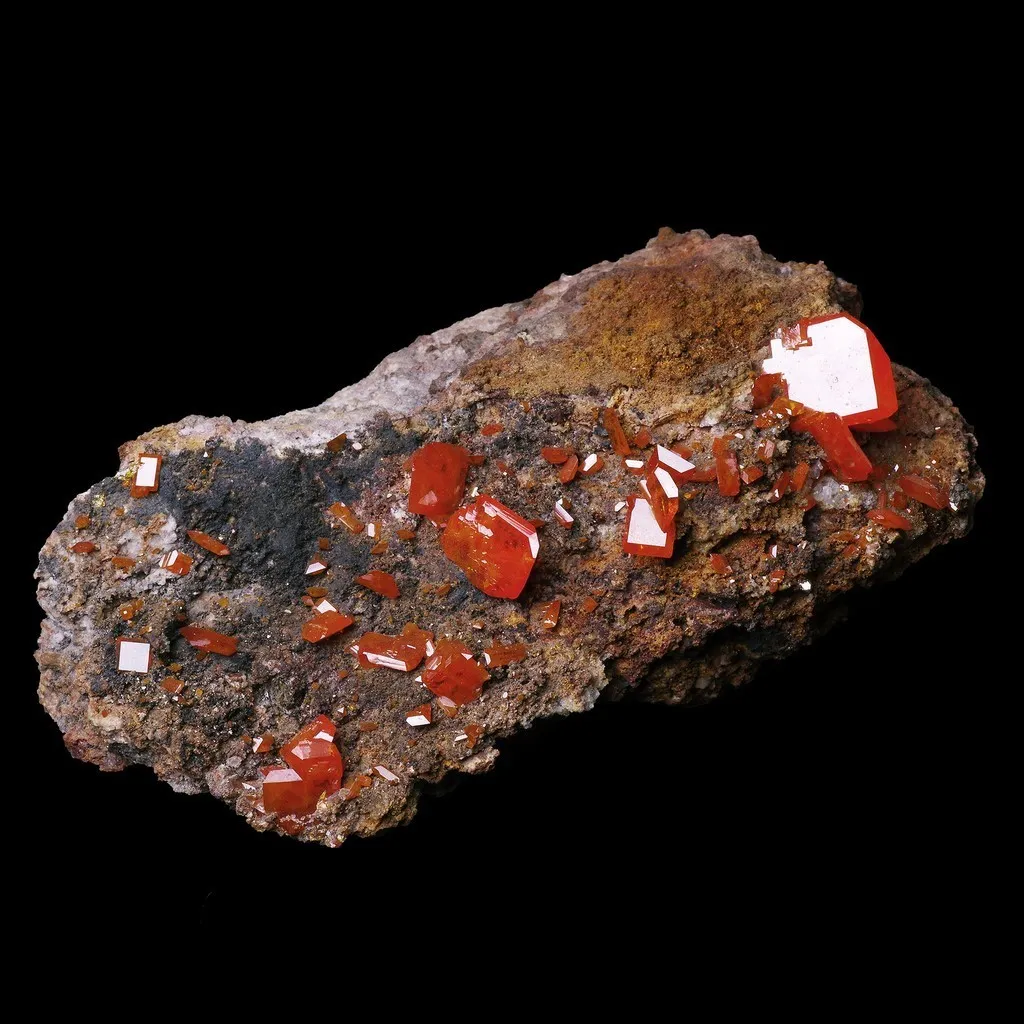

Wulfenite from Lantignié, Rhône, France

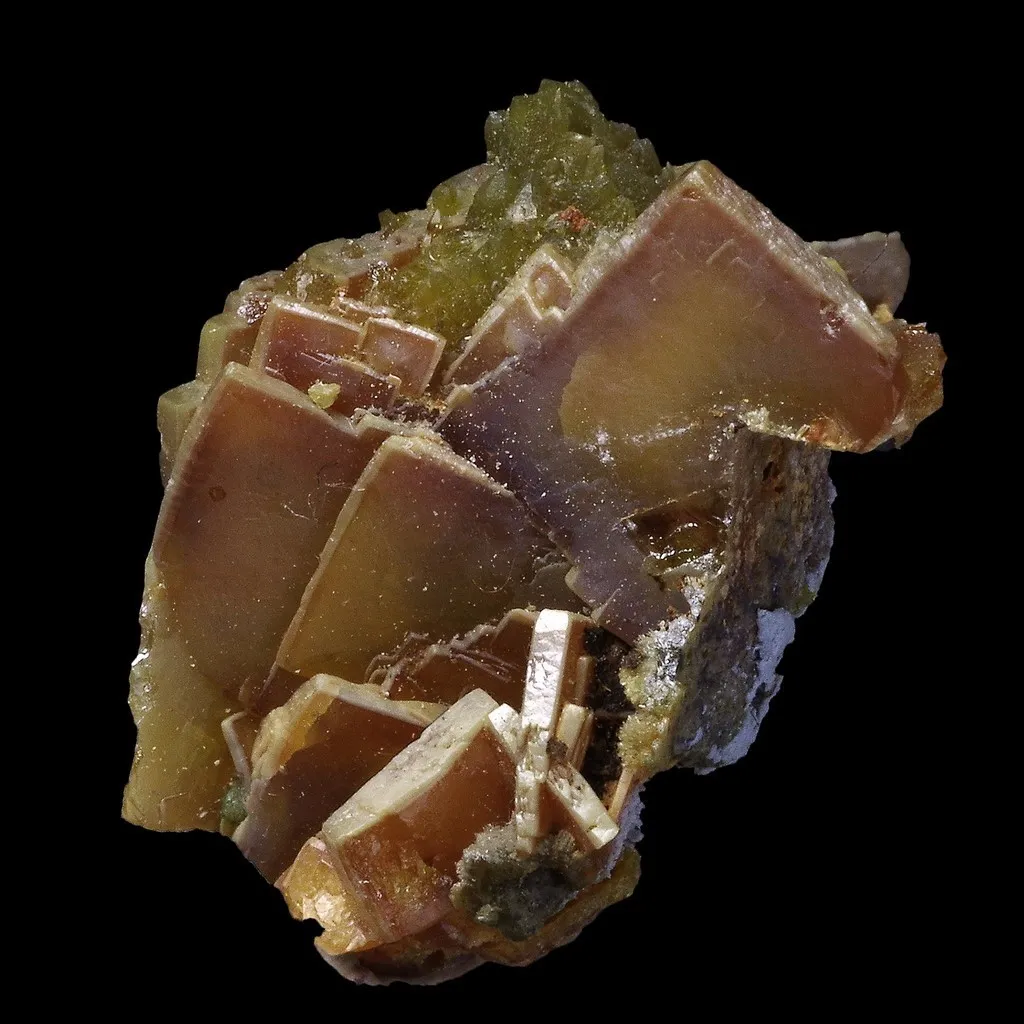

Wulfenite from Lantignié, Rhône, France

Twinning and special forms

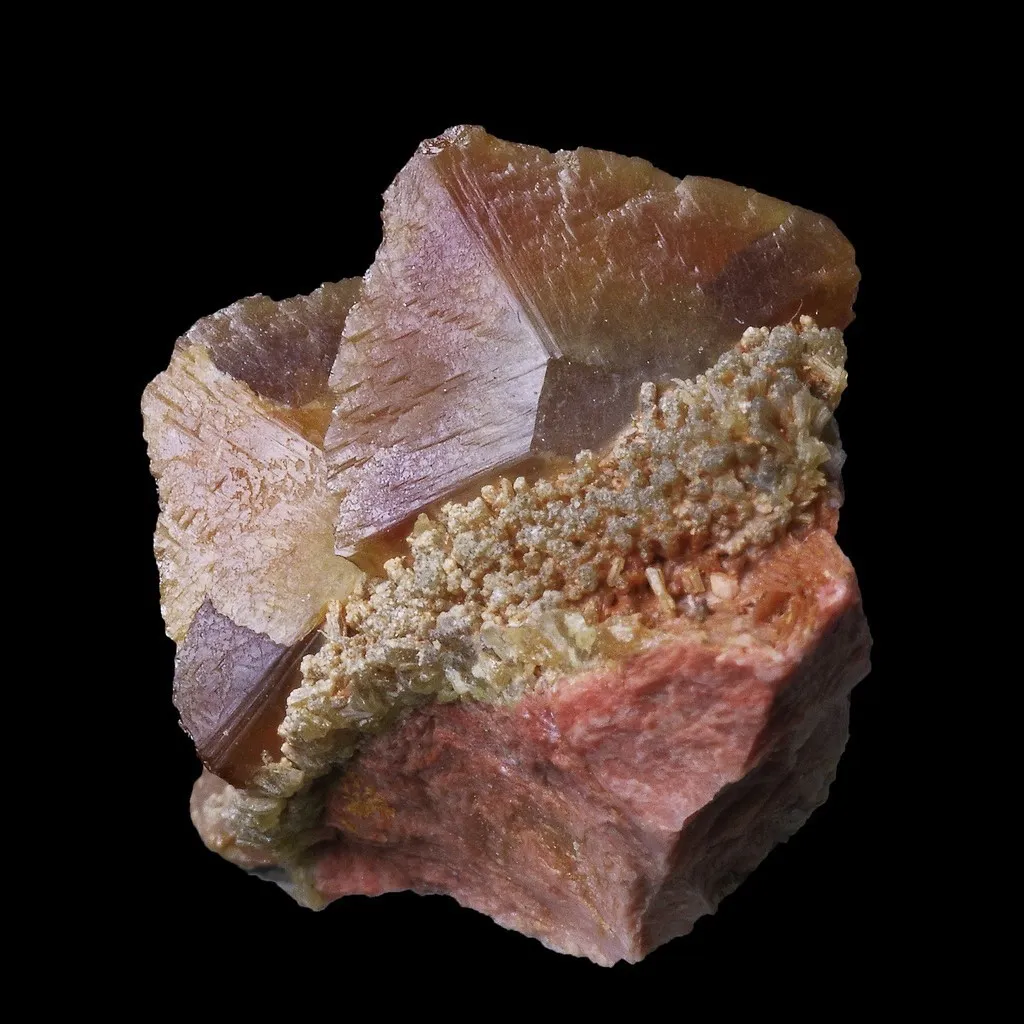

Wulfenite can be twinned on {001} which is fairly common but difficult to observe because of the flattened morphology of most crystals. However, we can see it on crystals with tetragonal morphology on the Mezica deposit especially (photo right).

Fakes and scams

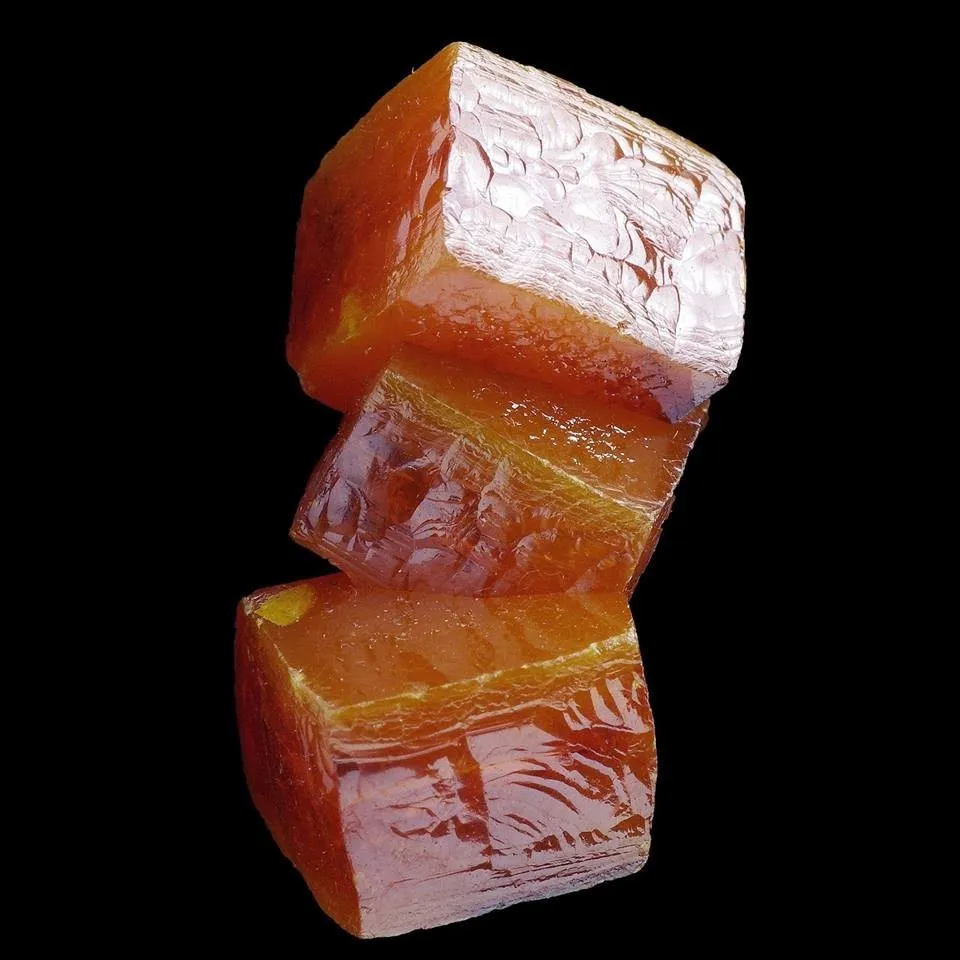

The wulfenite strongly resembles the potassium dichromate crystals (left), which are obtained by evaporating a saturated solution (in the same way as the blue crystals of copper sulphate). Some unscrupulous sellers have sold these "lopezites" (commercial name of this synthesis) for wulfenite. The crystals of "lopezite" are not stable and dissolve in water by dyeing bright orange whereas wulfenite does not. It should be remembered that potassium dichromate is extremely toxic to humans and their environment, see our article on this topic here : Lopezite : an extremely dangerous fake



Hardness : 2.5 to 3
Density : 6.5 to 7
Fracture : Irregular to subconchoidal
Trace : White, white-yellow




TP : Translucent to transparent
IR : 2.283 to 2.405
Birefringence : 0.122
Optical character : Uniaxial -
Pleochroism : Weak
Fluorescence : None


Solubility : Sulfuric acid

Magnetism : None
Radioactivity : None
